Shipping Container Dimensions and Specifications

Container Dimensions and Specifications

A typical ISO shipping container is made from Cor-ten steel also known as  “weathering steel”. Cor-ten steel is a corrosion resistant steel that is used within many industries where exposed steel is in harsh conditions.

  1. Steel corrugated sheet sidewalls, roof, and back panel
  2. Purin reinforced 1-⅛” Marine Plywood Floors
  3. All-welded-steel, continuously
  4. Floor structure is 6” steel cross members

Container Dimensions

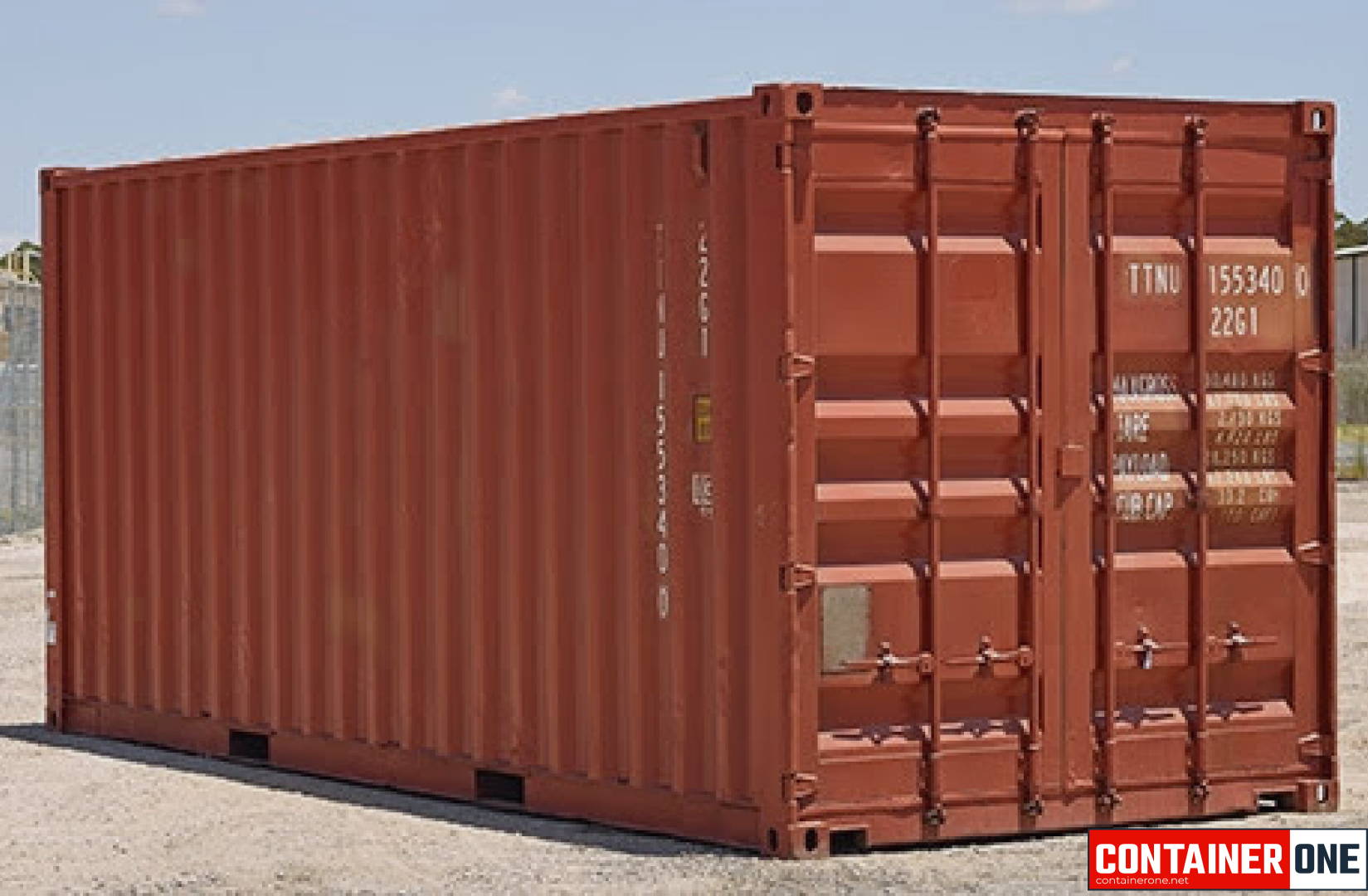

20 ft Standard Dry (8'6" x 8' x 20')

20 ft Standard Container Measurements

Weight 4500lbs

Interior Dimensions:

Length: 19′ 5″
Width: 7′ 8-⅛”
Height: 7′ 9-⅝”

Door Opening:

Width: 7’ 8-½”
Height: 7’ 5-¾”

40 ft Standard Dry (8'6" x 8' x 40')

40 ft Standard Container Measurements

Weight 8500lbs

Interior Dimensions:

Length: 39′ ⅜”
Width: 7′ 8-⅛”
Height: 7′ 9-⅝”

Door Opening:

Width: 7’ 8-½”
Height: 7’ 5-¾”

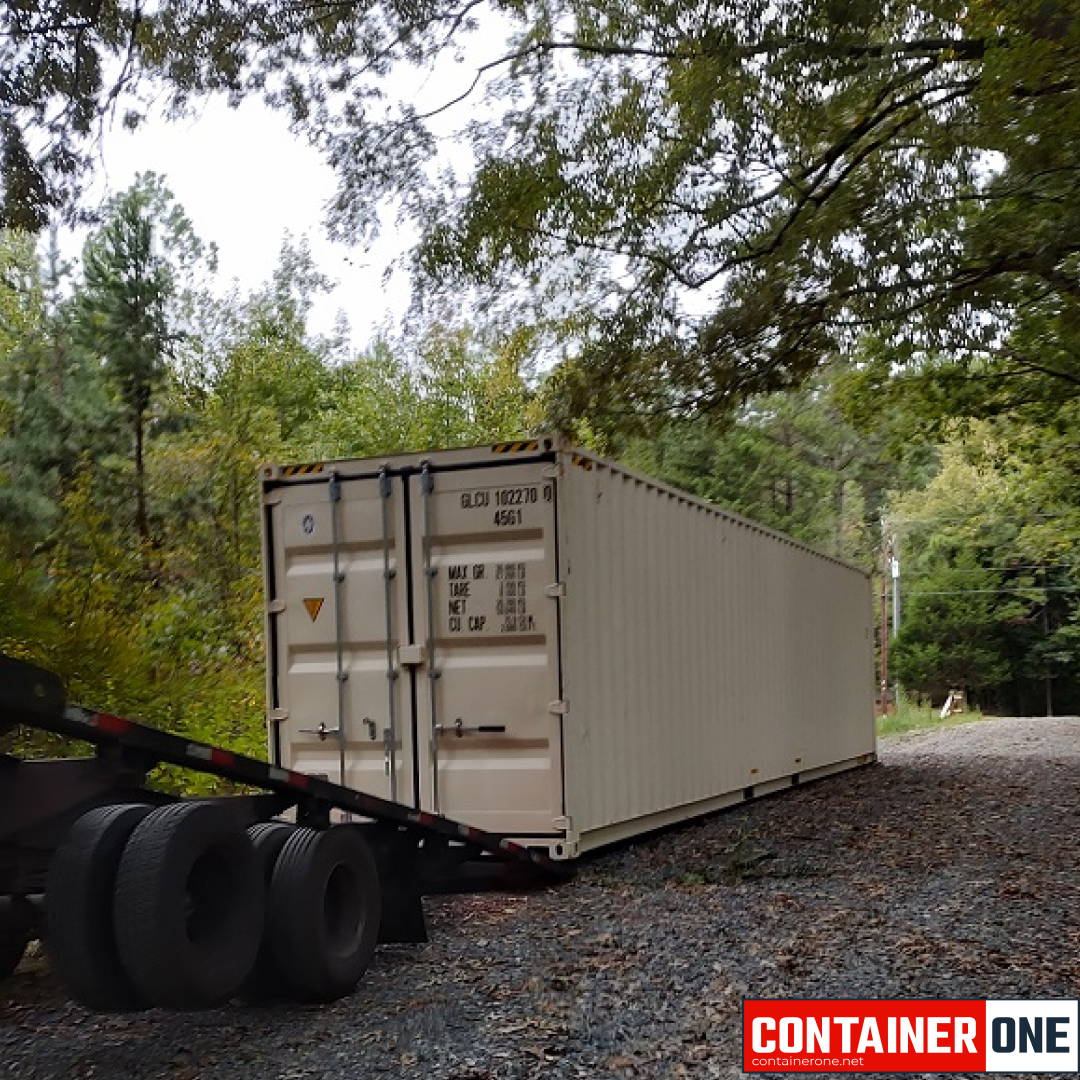

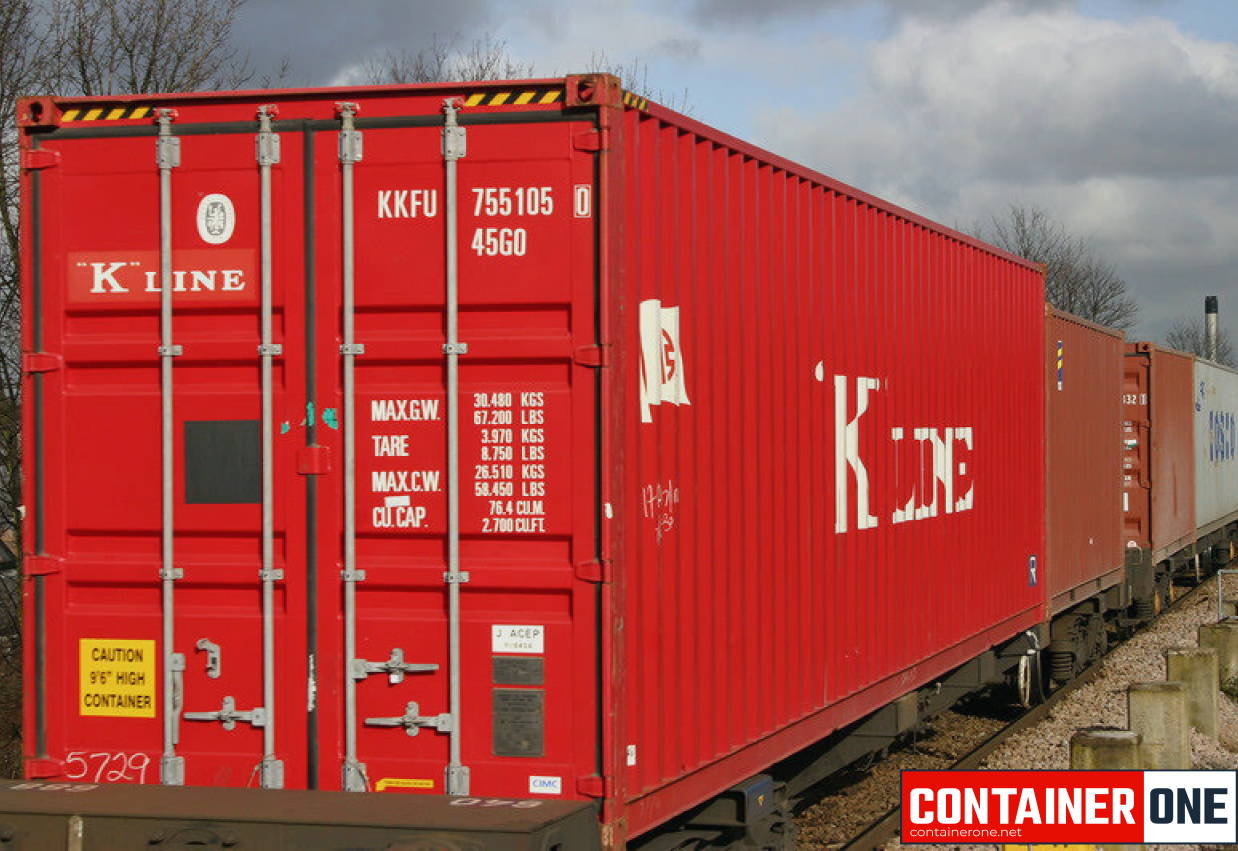

40 ft High Cube (9'6" x 8' x 40')

40 ft High Cube Container Measurements

Weight: 8750 lbs

Interior Dimensions:

Length: 39′ 4”
Width: 7′ 7”
Height: 8′ 9″

Door Opening:

Width: 7’ 8″‘
Height: 8’ 5”

53 ft High Cube (9'6" x 8'6" x 53')

53 foot Shipping Container



Weight: 12,500 lbs

Interior Dimensions:

Length: 52′ 6″
Width: 8' 2”
Height: 8′ 11”

Door Opening:

Width: 8’ 2”
Height: 8’ 10”
